Quick Details

  • Type: Sprinklers
  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: LUMAO
  • Model Number: LM-R5
  • Sprinkler Type: 360 Gear Drive
  • Product Name: Pop-up Rotating Sprinkler for Landscape
  • Application: Agriculture Irrigaiton
  • Usage: Garden Farm Irrigation Lawn
  • Name: Watering Irrigation System Pop-up Sprinkler
  • Feature: Atomized Adjustment
  • Program type: Landscaping Irrigation Systems
  • Size: 3/4" Female
  • Height: 185mm
  • Angle: 23°,11°

Packaging & Delivery

Packaging Details 3/4 Inch Agricultural Underground Garden Lawn Pop Up Sprinkler Irrigation System Rotating Pop up Sprinkler
Measure:35.5*35.5*23 cm
CTN: 25 pieces
Weight: 5.9 kgs
Delivery Time 20 days after receive the payment

3/4 Inch Agricultural Underground Garden Lawn Pop Up Sprinkler Irrigation System Rotating Pop up Sprinkler

What is the Details of our Sprinkler?

Product Name:

3/4'' inch Female China automatic irrigation pop-up sprinkler, center pivot pop up sprinkler on sale

Bottom Inlet:

3/4'' female NPT thread

Overall Body Height:


Exposed Surface Diameter:

4.1 cm

Pop-up Height:

10 cm

Trajectory Angle:

Standard: 23°, low: 11°


25 pieces in one box or customized

Carton size:35.5*35.5*23cm or customized
Production Lead time:7 days for available designs,Customized: 15-25 days

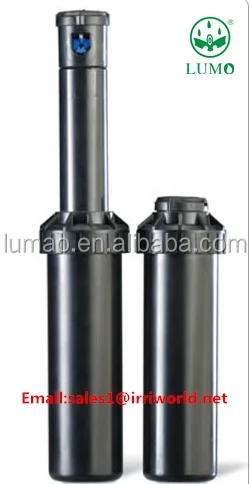

Product Picture

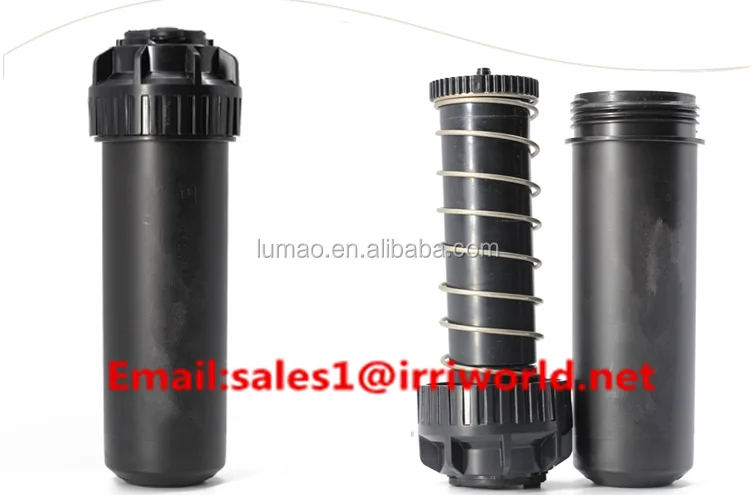

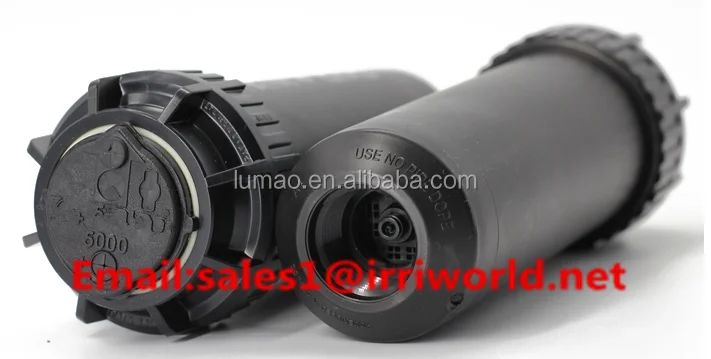

Product Pictures

Product Features



General Features:

1. 40°to 360°Arc rotation and reversing full circle rotation in one.

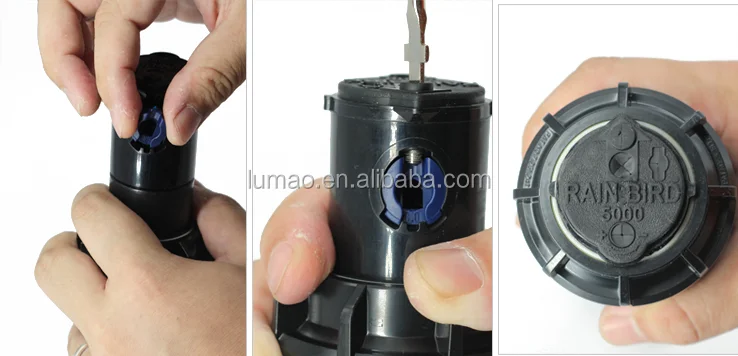

2. Top-adjust arc adjustment requiring only a flat-blade screwdriver.

3. Pressure-activated multi-fuction wiper seal protects internals from debris and assures positive pop-up and retraction.

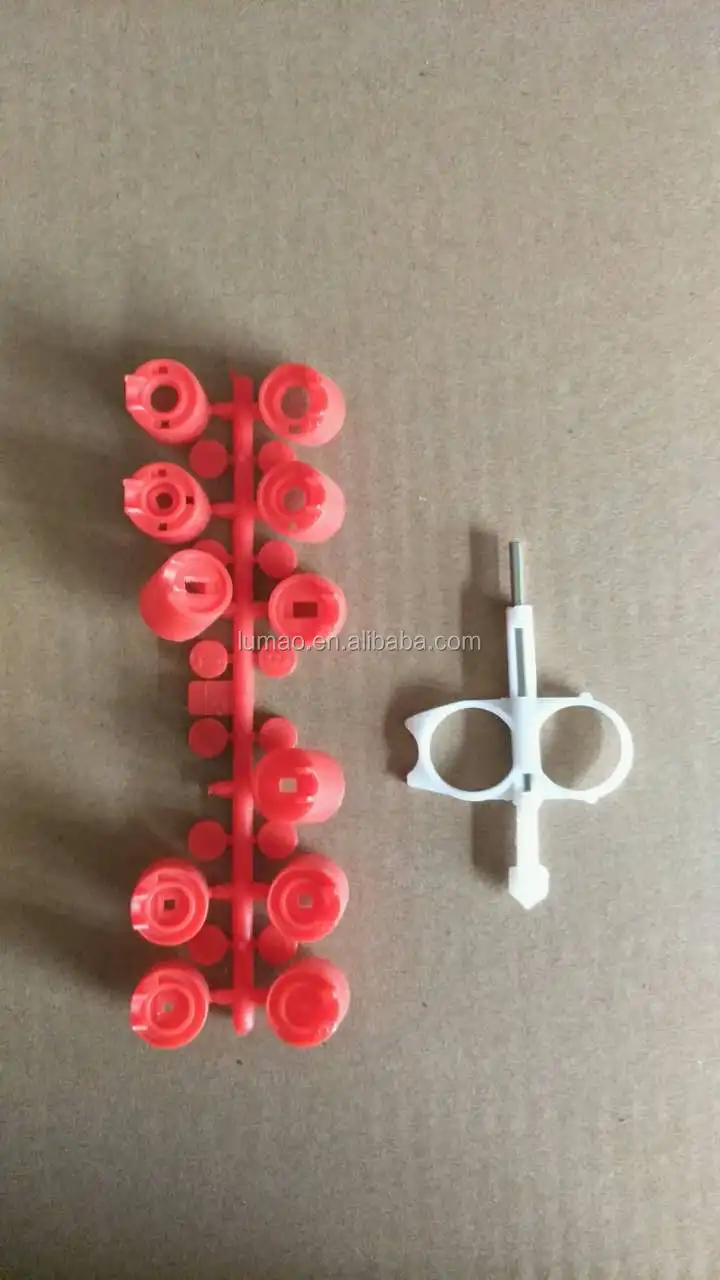

4. Radius adjustment screw allows up to 25% radius reduction without changing nozzles.



1. Bottom inlet 3/4’’ female NPT thread.

2. Overall body height: 18.5 cm(7 3/8’’)

3. Exposed surface diameter: 4.1 cm( 1 5/8’’)

4. Pop-up height: 10 cm (4’’)

5. Trajectory angle: standard -23°, low-11°

Related Items

RELATED ITEMS(Click below photo to see more)

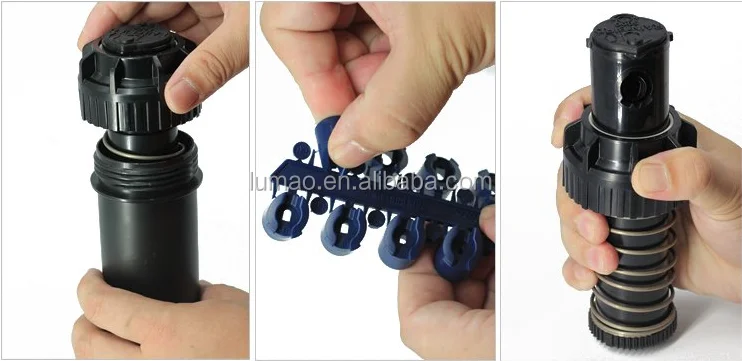

Installation Guide:


Carton Size35.5cm*35.5cm*23cm or customized, 25pieces in one box
Gross weight5.9 KGS
Factory Show






  • QWhat is the MOQ ?
  • A1000pcs for our own available designs
  • QCan I mix different designs?
  • ASure!
  • QCan I get a lower price if I order large quantities?
  • AYes, cheaper prices with more bigger size orders.
  • QCan I add or delete items from my order if I change my mind ?
  • AYes, but you need to tell us asap. If your order has been done in our production line, we cannot change it.
     It is about 2 days after confirming the order.
  • ACan I get the pre-production sample ?
  • AYes, we will send you pp sample, after you confirm, then we will start production.
  • QWhen you ship my order?
  • ANormally 7-10days after receiving your payment, but it can be negotiated based on order qty and production schedule.
  • QHow about the quality guarantee period?
  • ANormally the sprinkler can be used for 2-4year, but you know, it's also depend on the frequency.
  • QHow can you guarantee the production quality ?
  • AWe are 10years sprinkler manufacturing, have obtained positive feedback from our customers.
